Used Rotary Kiln for Limonite

Used rotary kiln for limonite is a key secondary calcining equipment for limonite roasting in mining and metallurgical industries. Featuring cost-effectiveness, quick startup and stable operation, it is a preferred choice for small and medium-sized mining enterprises and ore processing plants to reduce production costs and put into operation rapidly. It is mainly used for magnetization roasting, dehydration, decarburization and purification of low-grade limonite, realizing efficient utilization of limonite resources.

1. Core Application & Process Value

Limonite is a weakly magnetic iron ore with difficult separation and low recovery rate in direct beneficiation. Rotary kiln roasting is a critical process to improve beneficiation efficiency.

Through high-temperature roasting, the used limonite rotary kiln removes moisture and impurities from limonite and completes magnetization transformation, converting weakly magnetic limonite into strongly magnetic iron ore for efficient iron concentrate extraction in subsequent magnetic separation. It also realizes ore oxidation and modification, greatly improving the utilization rate of low-grade limonite, solving the difficulty in direct processing of raw ore, realizing resource utilization of mine waste, and reducing raw material procurement costs for enterprises.

2. Structural Composition & Advantages

2.1 Main Structure

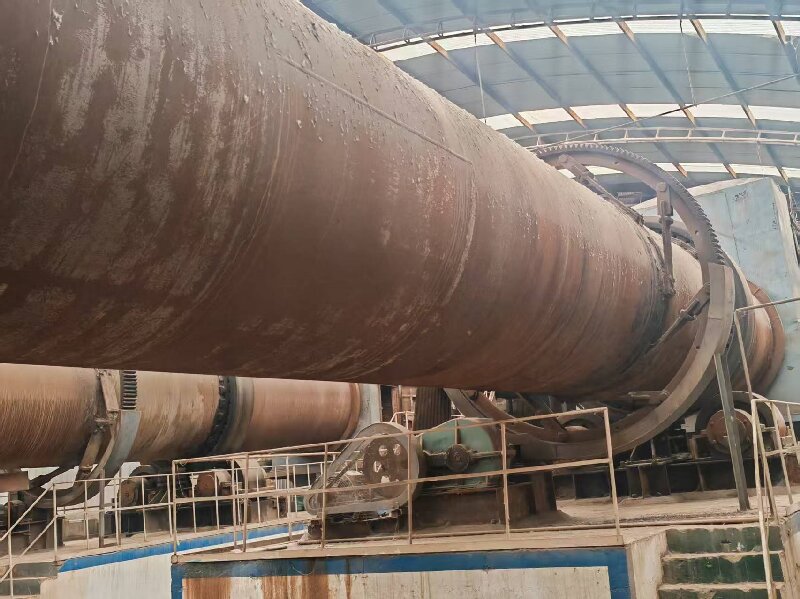

The used limonite rotary kiln features a complete structure, mainly consisting of kiln shell, transmission device, supporting device, thrust roller device, kiln head and kiln tail sealing system, combustion system and temperature control system.

The kiln shell is rolled from thickened steel plates with high-temperature refractory linings inside to withstand severe calcining environments. The transmission system operates smoothly with adjustable rotating speed to adapt to different roasting processes. The kiln head and tail adopt a dual sealing structure of radial friction labyrinth and fish scales, ensuring excellent tightness to prevent heat loss, dust emission and cold air ingress, maintaining stable calcining temperature.

2.2 Advantages of Used Equipment

- Remarkable Cost Advantage: Significantly lower price than new equipment, cutting procurement cost by 30%–50%. No long production lead time; commissioning can be realized quickly after installation, greatly shortening project implementation period.

- Stable & Durable Performance: Sturdy design and few wearing parts. After overhaul and maintenance, second-hand equipment from formal channels delivers nearly identical operating rate and roasting performance to new equipment, supporting long-term continuous production.

- Easy Operation & Maintenance: Simple structure, high degree of automation, user-friendly operation, low daily maintenance workload and cost, suitable for workshops of all scales.

- Strong Adaptability: Kiln speed, calcining temperature and feeding rate can be adjusted according to limonite grade and output requirements. It can also process coal gangue, ceramsite and other materials, realizing multi-purpose function.

3. Common Specifications & Performance Parameters

Various specifications of used limonite rotary kilns are available to meet different output demands. Main market models are listed below:

Specification (mm) Kiln Diameter (mm) Kiln Length (mm) Capacity (t/h) Motor Power (kW)

φ1.4×33 1400 33000 0.9–1.3 18.5

φ1.6×36 1600 36000 1.2–1.9 22

φ1.8×45 1800 45000 1.9–2.4 30

φ2.0×40 2000 40000 2.5–4.0 37

φ2.2×45 2200 45000 3.4–5.4 45

φ2.5×50 2500 50000 6.25–7.4 55

The kiln inclination is generally 3%–4%, and rotating speed is adjustable within 0.1–4 r/min, suitable for both small and medium-sized concentrators and large-scale mining processing projects.

4. Key Points for Purchase

1. Inspect Equipment Condition & Core Components: Focus on kiln shell deformation, refractory lining wear, gear meshing, motor and reducer performance. Prefer equipment with short service life, good maintenance and no records of major failures.

2. Verify Parameter Matching: Confirm specification, capacity and power match daily output, limonite grade and process requirements to avoid insufficient capacity or excessive energy consumption.

3. Check Sealing & Temperature Control Systems: Intact sealing reduces energy consumption; precise temperature control determines roasting quality. Ensure normal temperature adjustment and constant temperature functions.

4. Select Reliable Suppliers: Choose professional second-hand mining equipment suppliers that provide overhaul, installation, commissioning and after-sales support to reduce procurement risks.

5. Application & Market Prospect

Driven by the trend of refined ore processing and low-carbon production, used limonite rotary kilns are widely used in magnetization roasting of low-grade limonite, tailings recovery and purification, metallurgical ore pretreatment and other fields. They not only cut upfront equipment investment but also efficiently utilize low-grade limonite resources to improve economic benefits.

After upgrading, the equipment can be equipped with waste heat recovery systems to further reduce energy consumption and meet environmental protection requirements, making it a cost-effective choice for the mineral processing industry.

Conclusion

Used limonite rotary kilns combine practicality and economy. With proper maintenance and parameter adjustment, they can reliably meet limonite processing production demands, serving as ideal equipment for enterprises to control costs, accelerate production and improve resource utilization.
