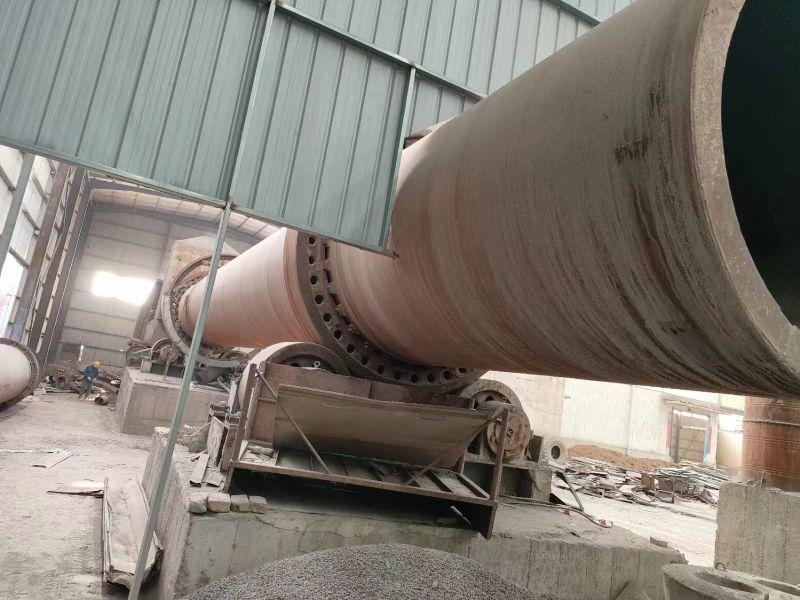

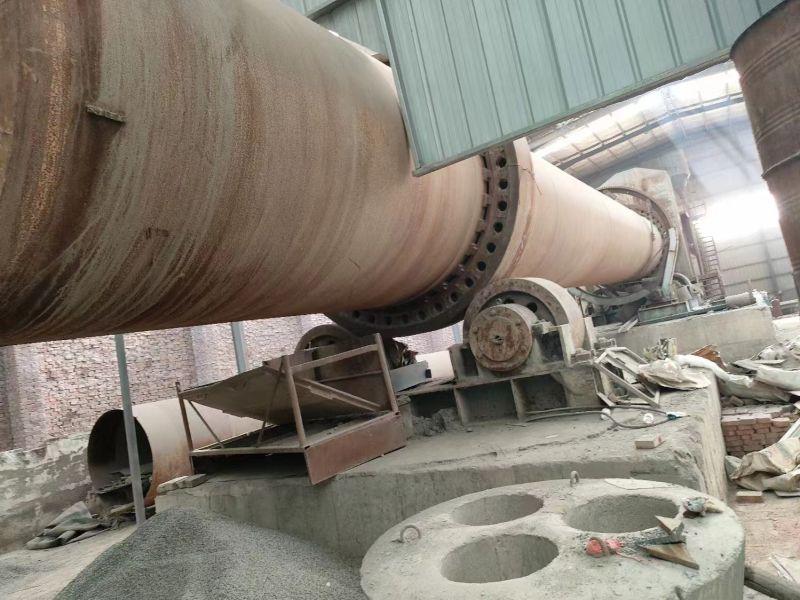

This set of equipment is currently located in Gansu Province, China.It was previously used mainly for the production of ceramsite sand.The refractory bricks inside the rotary kiln have been completely removed.The kiln is without a kiln head cover and kiln tail cover; both covers were damaged during the removal of refractory bricks by a small excavator and are no longer usable.All other accessories are in good condition.According to infrared flaw detection, the wear on the tyres and supporting rollers is relatively minor and can be re-machined on a lathe if required.The motor and reducer can run normally when powered on.The ovality of the kiln shell meets the Chinese national standards.

Equipment Overview:

• Equipment Type: Rotary kiln for production of lightweight aggregates (expanded clay aggregate, LWA)

• Condition: Second-hand / used equipment

• Location: Gansu Province, China

• Primary Application: Previously used for production of lightweight aggregate sand

Kiln Dimensions:

• Diameter (D): 7.22 ft (2.2 m)

• Length (L): 147.64 ft (45 m)

Current Status:

• Refractory Lining: Completely removed from the kiln.

• Kiln Head and Kiln Tail Hoods: Missing. The hoods were damaged during refractory removal using a small excavator and are currently unusable.

• Other Components: All remaining components and accessories are intact.

• Kiln Shell: Ovality is within the tolerance specified by Chinese National Standard (GB).

Mechanical & Operational Condition:

• Kiln Tires / Riding Rings and Support Rollers: Inspected via infrared and ultrasonic testing. Minor wear observed; can be further machined on a lathe if necessary.

• Drive System: Electric motor and gearbox operate normally when powered.

•Fuel Type (original operation): Coal, natural gas, or oil (can be adapted depending on future use).
